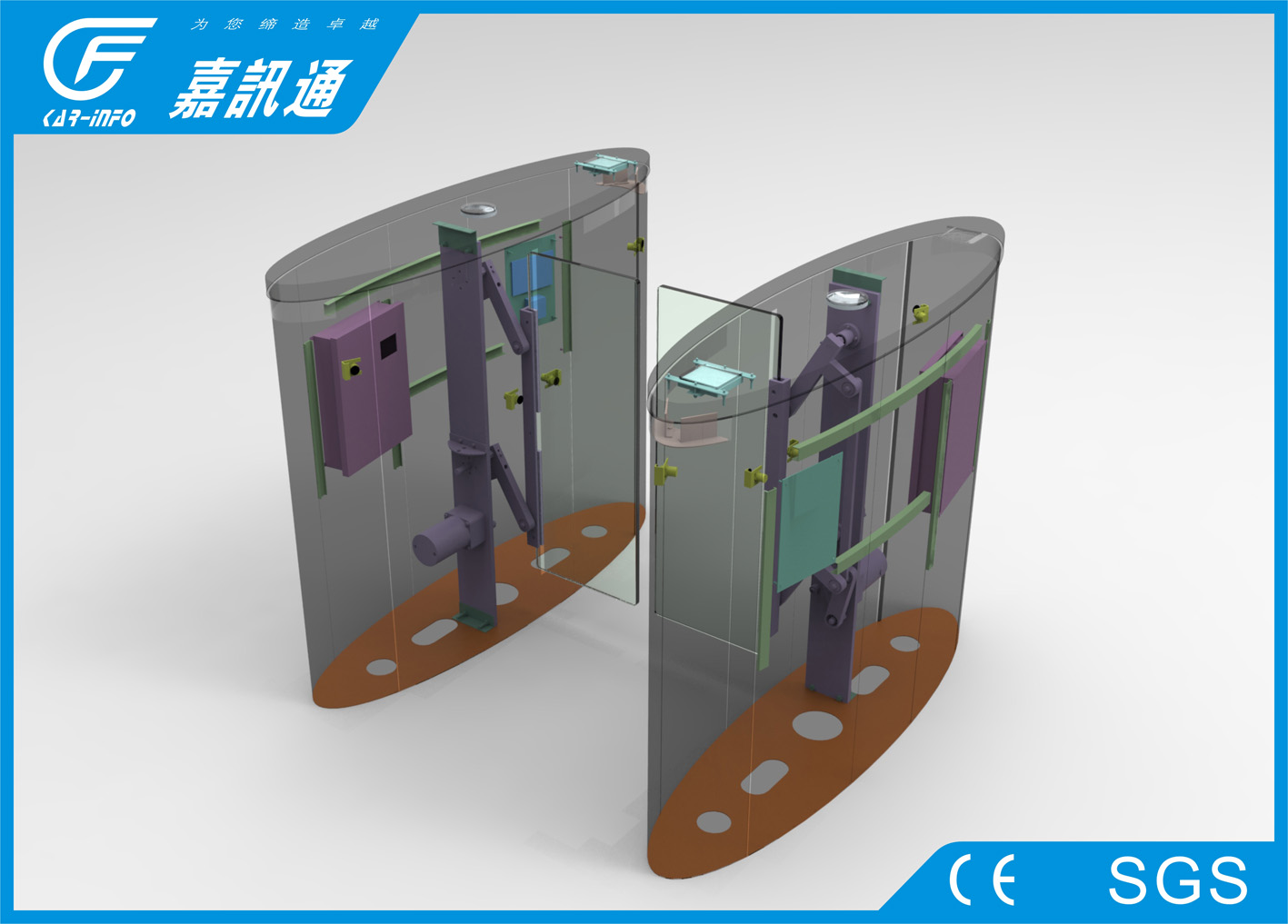

Automatic pedestrian waist high 304 stainless steel Sliding Flap turnstile with RFID card/fingerprint reader

1. Main function and characteristcs

1) With function of self-examine and alarm, it is convenient for maintenance and use.
2) Being able to program running status by the small keyboard in the main board
3) Preventing pedestrians or bicycle from being nipped and from hurt, the force of the pole is less than 2Kg
4) Sound or light alarm function
5) Poles are automatically locked until a opening signal is received.
6) Poles synchronization
7) Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
8) Channels automatically open when power off, and automatically close when power on.
9) Several card reading devices are attachable.
10) One direction or bi-direction control are optional.
11) It can be directly controlled and managed by remote control.

pecifications

1. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
2. Communication Interface: RS485 (Distance: <=1200m)
3. Material: Housing - 304 stainless steel Arm - Plexiglass
4. Dimension: 1200*300*1000mm Arm Length: 260mm
5. Weight: 90kgs
6. Working Environment: Indoors or outdoors with shed
7. Arm Turning: Single direction or Bi-direction
