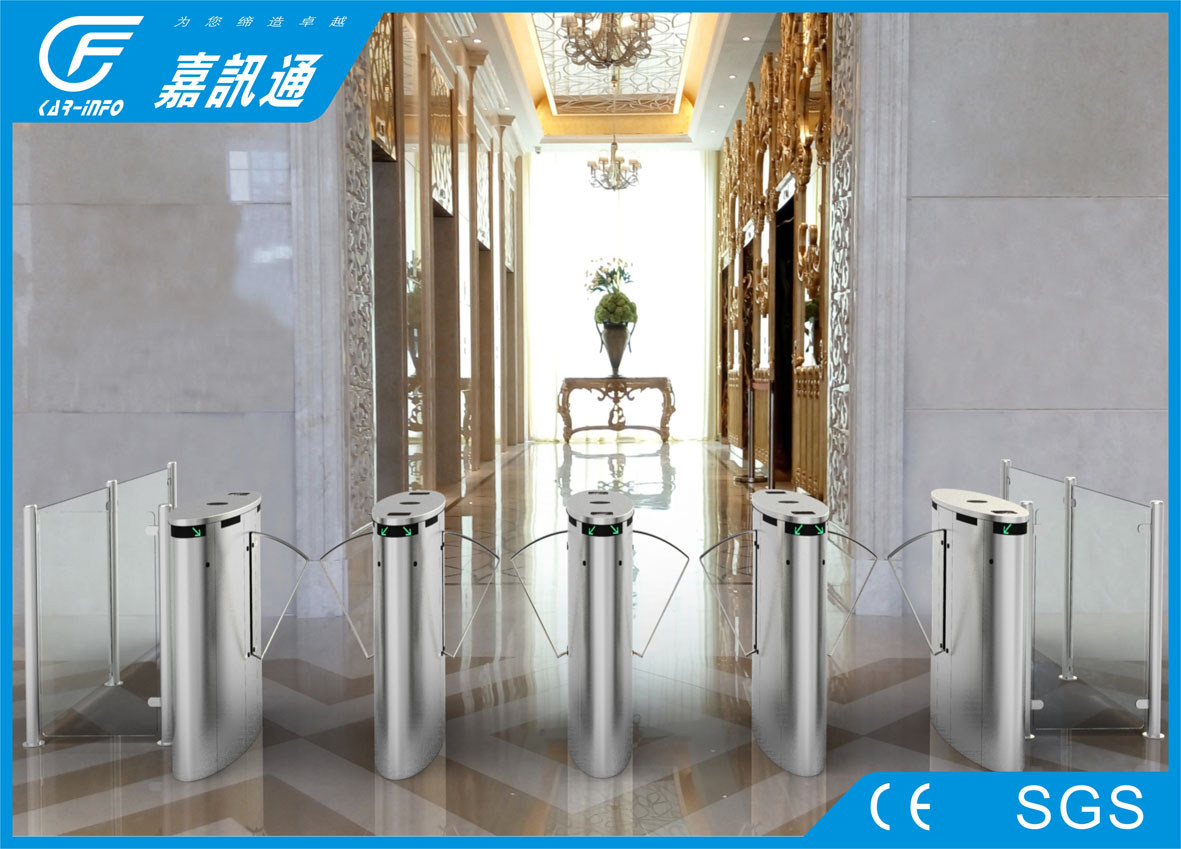

Stainless Steel Smart Automatic Fingerprinted Electronic Gate
Turnstile with Lobby
Technical Datas
| product name | Stainless Steel Smart Automatic Fingerprinted Electronic Gate
Turnstile with Lobby |
| Model | CF238 serise |
| Material | 304 stainless steel |
| Working environments | -15degree -75 degree |
| Certificate | CE |
| Application | school , park , station , office , gov |
| Packing | wooden package |
| Input signal optional | Relay signal&DC12V level signal or DC12V pulse signal |
| Status Indication | Allow passing through/ Forbidden |
| Service Life | 3,000,000 cycles |
Door Module and Control Unit
The control unit, self-developed by our company, is mainly use for
controlling the whole process of swing barrier gate such as the
switch of the door unit, the infrared signal handling and the
status of the indicator light etc.
The brushless dc servo motor, high-speed DSP chip, special coded
disk, and speed reducer are used by the door module unit, showing
S- shaped curve mode, thus, the door unit moves faster, more stable
and more accurate, at the same time, supporting the user settings
for the door running speed, position and other parameters etc. Its
interface supports CAN bus, RS485 bus and digital I/O direct
control etc, so as to input the corresponding product and the
system for customers secondly.
Control Mode
The system has four working modes:emergency mode, maintenance mode,
Normally closed mode, Normally open mode.
Please see the details for each mode as follows:
Emergency mode:when the system is in the state of emergency, mainly
use for handling contingencies.
Maintenance mode:when the system is in the state of maintenance,
mainly use for cleaning and maintaining of the gate.
Normally closed mode:When no people pass, the doors of the gate are
closed.
Normally open mode:When people pass, the doors of the gate are
open.
Remarks: Emergency mode and maintenance mode are independent access
process, Normally open mode and normally closed mode are combined
mode, working with nine kinds of access mode, then come into the
final access control.
Alarm under the following conditions
Unauthorized passing- the person has no valid authorized card.
Reverse Passing - when the door opens, the person walks in the
opposite direction.
Tailgating - when one person is authorized to pass, another follows
by the front one into the lane
Flap Functions
1. A compact electro-mechanical design with unique drive and a
self-lock mechanism
2. Automatic detection for malfunction
3. Input interface for dry contact and switch signal connection
4. Adjustable auto-delay closing
5. Infrared photocells for safety access
6. Alarm for unauthorized access and no access against passenger
flow
7. Anti-reversing passing
8. Auto closing when power on
9. Auto open and free access when power off
10. Adjustable access directions
11. Emergency interface available
12. Traffic light indicating passenger access
