Government Research Institutes Face Uthentication Security Control
Flap Barrier Gate

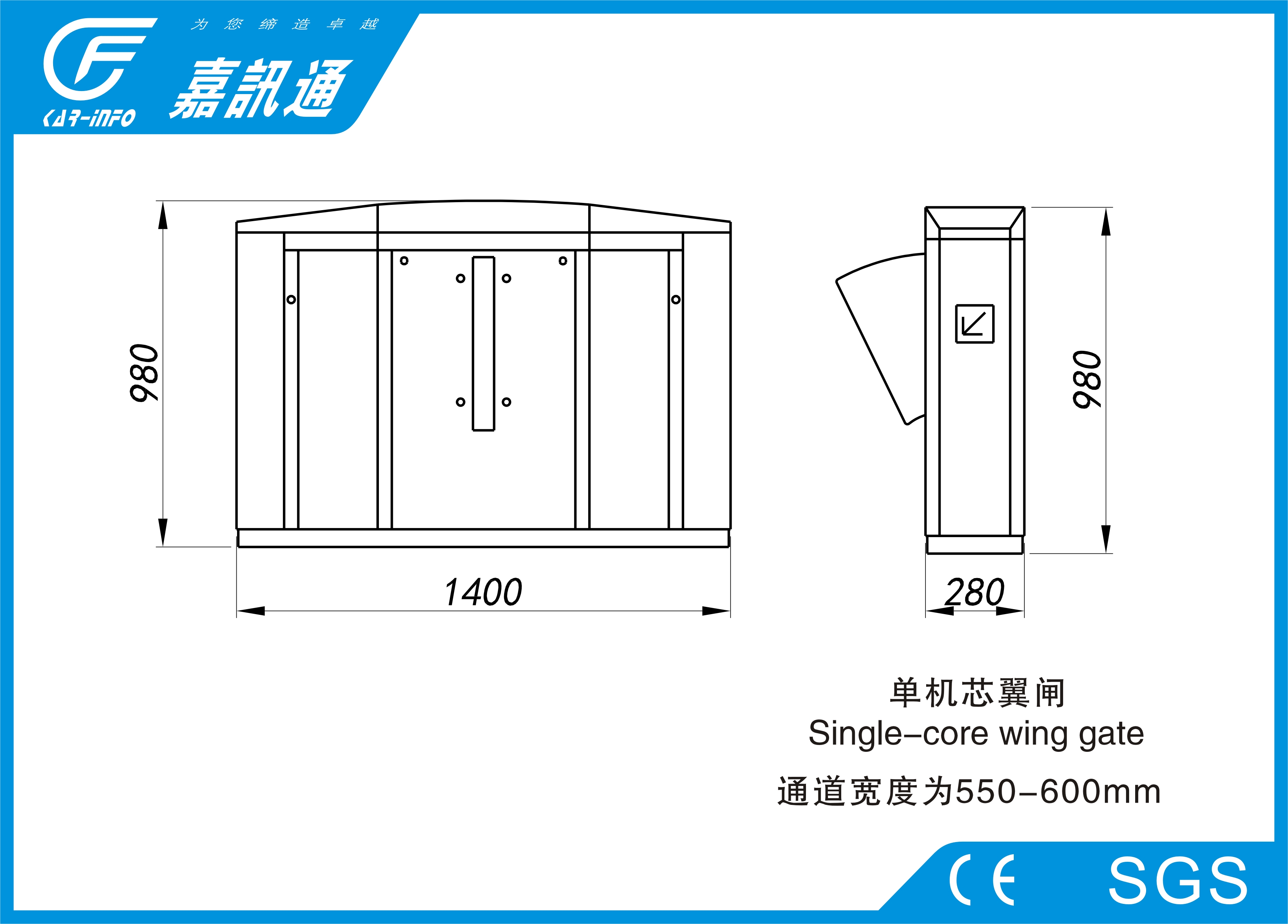

Flap turnstiles Technical
| product name | Government Research Institutes Face Uthentication Security Control
Flap Barrier Gate |
| Model | BDF-601 |
| Material | 304 stainless steel |
| Working environments | -15degree -75 degree |
| Certificate | CE |
| Application | school , park , station , office , gov |
| Packing | wooden package |
| Input signal optional | Relay signal&DC12V level signal or DC12V pulse signal |
| Status Indication | Allow passing through/ Forbidden |
| Service Life | 3,000,000 cycles |
About Drive board
1 Drive board description
Flap barrier drive board,air switch,power supply were included in a
stainless box,fixed inside of the housing,box size
is:350mm(L)*220(W)*65(H)mm,there are wiring posts on the box for
drive board.
1-5 wiring posts for user input(for access control system etc);down
end wiring posts for speed gate wing position detection
inputs(connected),1-9 wiring posts for IR sensors dection
inputs(connected).
Note:10 core cable wiring the master device and slave device
synchronization inputs keep them works fine.
2 Unlock input
1# unlock input,2# unlock input and GND:gate opening input
interface,receive dry contact signal to open the gate.The are two
pairs of input for both in and out.That means access control system
need two relays to indicate in and out.
ALM:Alarm input for normal open.
XF:Emergency input for normal open,for example fire alarm input.
3 Wing's position detection input
There are +12V,UP,DOW ,GND inputs detecting wing's postion;
+12V,UP,GND:use for detecting speed gate is unlock status;
+12V,DOW,GND:use for detecting speed gate is lock status;
4 IR sensor detection input
There are 3 pairs IR sensor input,each pair inlcuded 3 inputs,used
for wiring with first (for entry&exit
detection),second(installed in the middle of the housing),third(for
entry&exit detection).Totally 5 pais IR sensor detection
input(1# to 5#),standard device only used 1#,3#,5# inputs,others
are expand input.
IR sensor inputs:12V,IR1,GND,12V,IR3,GND,12V,IR5,GND
Flap Functions
1. A compact electro-mechanical design with unique drive and a
self-lock mechanism
2. Automatic detection for malfunction
3. Input interface for dry contact and switch signal connection
4. Adjustable auto-delay closing
5. Infrared photocells for safety access
6. Alarm for unauthorized access and no access against passenger
flow
7. Anti-reversing passing
8. Auto closing when power on
9. Auto open and free access when power off
10. Adjustable access directions
11. Emergency interface available
12. Traffic light indicating passenger access
