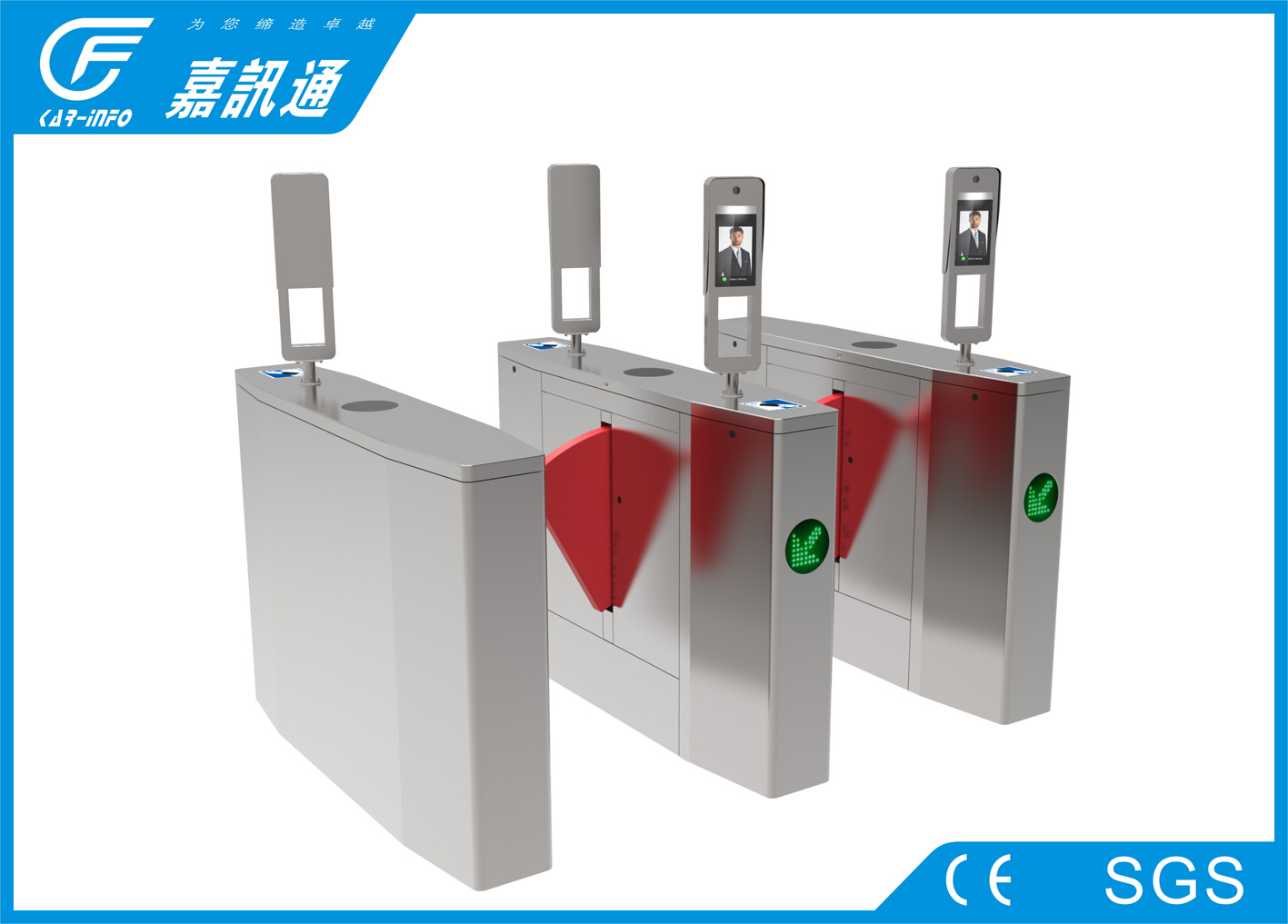

Office Buiding Access Control Turnstile Gate ,Fingerprint Entrance
Waist Height Turnstile
Flap turnstiles sepecification
| Contour: | Modules integrated, circular and sleek, with brushed surfaces,
passengar friendly |
| Size: | 1400*280*980 (L*W*H) |
| Material: | SS 304#, min. thickness 1.5mm |
| Motherboard: | Advantech industrial CPU |
| Communication mode: | TCP/IP |
| CPU: | AC motor + reduction device |
| Detection speed: | 40-45 persons/minute |
| Display screen: | 6.5" HD LCD |
| Passage detector lights: | red and green |
| Top indication: | RGB lights LED |
| Voice module: | Voice notices (succeeded card reading, half fare tickets
recognizing etc), optionally customized |
| Power supply: | Input AC 22V +10% |
| |
| |
| Protecting module: | Wire circuit with leakage proof, anti-lightening as well as
anti-moisture and temperature control (optional) |
| Operational temperature: | -40ºC-50ºC |
| Operational moisture | 20% - 95% (non frozen frost) |
| Durability: | Min. 6 million times |
| Safety device: | Fire-fighting integratable, outomatic open while power cut-off,
open with one press in emergency |
Features and functions
1. Rainproof housing, #304 stainless steel.
2. CNC stamping and laser drilling, presenting a novel and elegant
appearance.
3. Innovative and unique mounting surface ensures simple and
convenient installation for system integrators.
4. Direction can be set as single-direction or bi-direction.
5. Direction indicator.
6. Can be used with variety of card readers: IC / ID card readers,
bar codes, fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within
the prescribed time (default time is 5 seconds), the system will
cancel the authority of the current user automatically.
8. Arms auto drop when power off, complying with fire safety
requirements.
9. The mechanism is equipped with an automatic regulated hydraulic
buffer device. There is no noise and impact when running.
10. Dual-bearing device, keeping the gate in balance when there is
external force
Advantage
1. We use 304 stainless steel from manufacturer ZhangPu,it is the
best 304 stainless steel in China,the price and quality higher than
other brands like LianZhong
304 and Taigang 304.We use Lianzhong's 304 stainless steel several
years ago,but it get rusty after 1-2 years,so we changed to use
ZhangPu brand.
2. We use original Mitsubishi brand drive board,it is stable with
overheat and overload dual protection,other company use cheap drive
board,it is easy to be burned,
need extra cost to buy a new drive board.
3. Our turnstiles gate with mechainical auto-recerse and IR
sensor,double protection to avoid crushing onto user.
So our gate life time more than other cheaper one,more stable and
durable,you will no need worry about the after sale service for
your end users after you selling them.
