Intelligent rfid& fingerprint access control system three-roller
gate& Tripod Turnstile

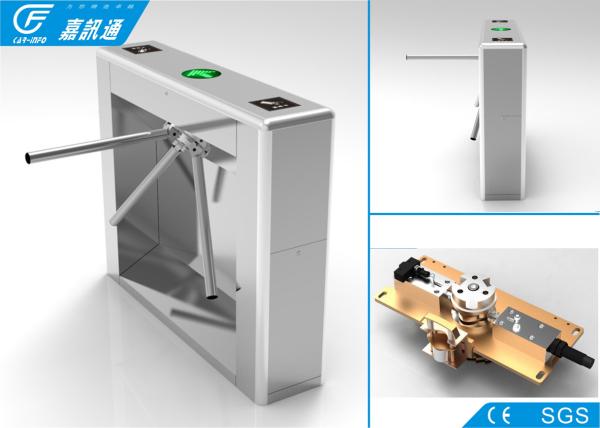

Tripod Turnstile Description:
The standard tripod turnstile series are made of 304 stainless
steel, which is rustproof, durable, and can resist external
destroy. Its structure of cuboid framework and the arm not only
provide people with civilized and orderly transit manner but also
prevent the illegal in and out effectively. Meanwhile, m the
emergency, the arm will drop automatically. According to different
control modules, this series can be divided into full-auto type,
semi-auto type and manual type.
Tripod Turnstile Technical Specification:
| Description | Parameters |
| Lane Width | 550-570mm |
| IP | IP54 |
| Pass Speed | 30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Max Power Consumption | 200W |
| Opening time | 0.6S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 5,000,000 cycles |
| Outside packing | 67x110x42cm/130x110x42cm |
| Working Environment | -20°C~+60°C |
| Gross Weight | 65KGS/85KGS |
Tripod Turnstile Features:
1. SUS304 stainless steel sheet metal forming, beautiful, durable
2. Dimensions : 420 × 330 × 980 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : one-way, two-way (optional)
5. Control mode: manual/ automatic (optional)
6. Can mount a variety of control devices: metal security gate/ IC
card/ ID card/ card/ barcode card, etc.
7. Working environment: indoor(outdoor use shall stand awning)
8. Ultra quiet design: Mechanical design using third-generation
silent, smooth operation no noise impact;
9. Super bright passage indicator: directional design of ultra-
bright LED lights to indicate a more eye-catching ;
10. Automatic access function: the reader automatically run after
the brake lever to unlock certain angle, automatically bring people
through the gates ;
11. Multiple modes of function: by setting the switch can be set to
the gates normally open , normally closed two modes of operation ;
12. Access memory function: After several pedestrians card, access
gates opportunity to remember the number, until the entire passage
of pedestrians closing;
13. Power off the pole, the power from the bar features: gates
automatically after power brake lever to facilitate evacuation fall
to meet fire safety requirements ; ( automatic type )
14. Anti-collision function: no credit card pedestrian push the
brake lever , lock gates ;
15. Remote control: RS485 card can be accessed by computer or TCP
to RS485 remote control gates ;
16. Automatic reset function: by credit card is not specified ,
within the time gates back in situ cancel access .
17. Limit the number of access functions: limit the number of
access by software to meet the special circumstances of personnel
management ; ( to be customized )
18. Counting function: to increase the number of counter statistics
out ; ( to be customized )
19. Anti-reverse pass function: access process, the brake lever has
been rotated a certain angle after only forward, to prevent one
card too many people; (to be customized)
20. Illegal intrusion alarm function: no credit card when forced
through a pedestrian, the pedestrian gate alarm chance to swipe
traffic. ( To be customized )
