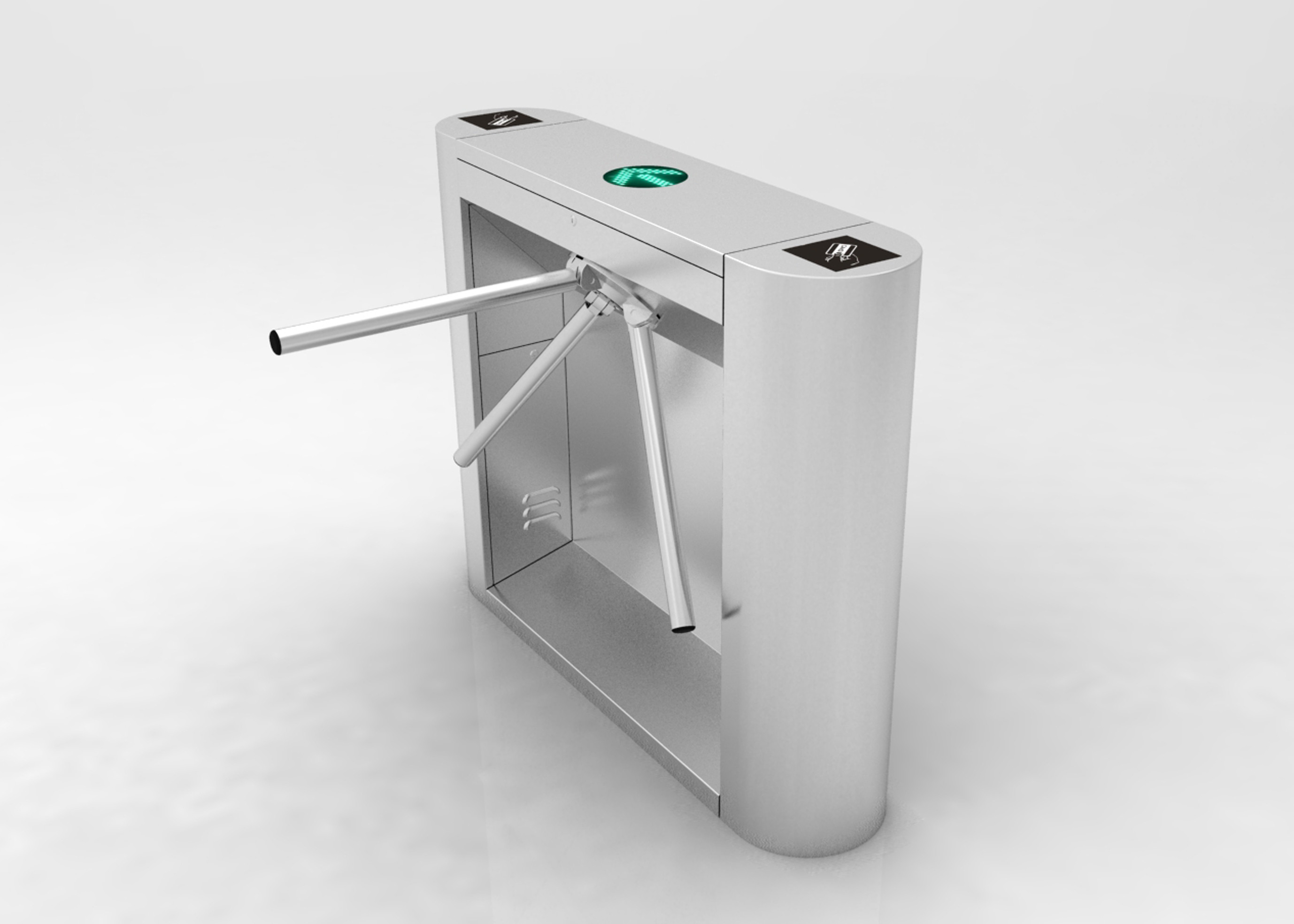

Jiaxuntong Tripod Turnstile Description
Technical Parameters:
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Machine core | Full Automatic |
| 3 | Operating Temperature | -45℃-60℃ |
| 4 | Relative Humidity | ≤95%, No Condensation |
| 5 | Passage Width | ≤600mm |
| 6 | Passing Speed | 45persons/min |
| 7 | Motor | DC motor, 30W/24V |
| 8 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V pulse,
Current>10Ma |
| 9 | Communication Connection | RS485 Communication |
| 10 | Material | Stainless steel 304,thickness is no less than 1.3mm |
| 11 | Communication Distance | 1200M
|
| 12 | Running life | 5--8 Million(Continuous Opening and Closing Operation) |
| 13 | Protect level | IP54 |
| 14 | Size | 1200*280*985mm(Bridge house); custom made as demand |
| 15 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 16 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming
Hall,Residence Area,Enterprise’s Entrance and Exit
Attendance,Gateway Guard,Charge Management,Special Access Control |
Main Features
1) Exquisite rotating plate and a self-lock mechanism
2) Passable for bi-direction
3) Self-locking within 5 seconds
4) Arm auto dropping when power off,arm auto raising when power on
again
5) Avoid unauthorized access
6) Counter output
7) Fire alarm emergency signal output
8) Input interfaces available for left access(L),right
access(R),emergency(EM),GND
What is the difference in functionality of Full Automatic, Semi
Automatic and ManualSetting Machanism?
1. The FullAutomatic machine is driven by the DC brushless Motorsystem, such motorized Machanism using the big and hard gears, no
abrasive wear, small passing resistance, so hardly with the outside force, you can pass easily with thecard.
And the brake beam will berising when the power is on, the beam will be down without the power.
It is the high intelligent turnstile, no maintenance all the of life, No Attrition, Low-noise, High
Intelligence
2. The Semi Automatic machine is driven by the heavy hard system, it does not havethe auxiliary force, so you can pass after giving the outside force
to it, it is traditionalintelligent turnstile.
3. The Manual Setting Machine is without the Motor and power, it is
the manual one to pass we just one direction
FAQ:
1. Can we use our access control system?
Yes, equipped with international interface, can be easily
integrated with other recognition devices.
2. If we buy your products, can you train us?
Yes, we can provide training free of charge. You can send your
engineers to us, we will train them in our factory.
3. Can you make it bi-directional? Any extra cost?
One direction or bi-direction is available, no extra cost.
4. Can it use for outdoor?
Yes, can be used for outdoor and indoor.
5. What's you warranty?
We provide one year warranty. After that, we can supply
chargeable spare parts.
Package:
1. Size:1450x400x1100mm
2. Gross Weight: 75KG
3. Package: Export packing, plywood box
