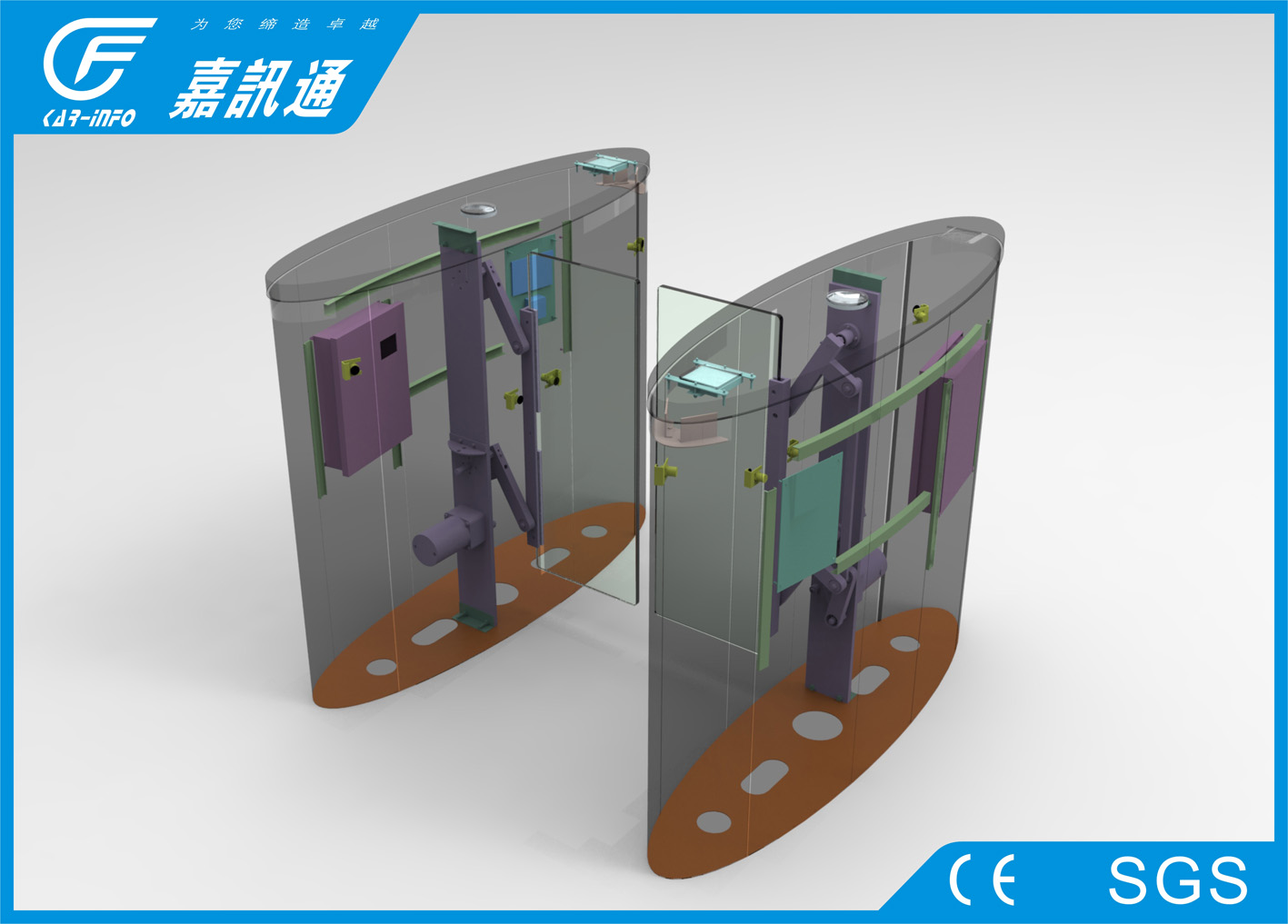

Auto Sliding Flap Gate Barrier Turnstile Bi - Directional Single Passage For Gym

Glass speed Gates describe :

Turnstiles gates feature:

Two gate posts with built-in electronics

Two glass swing panels

Double-sided section with built-in electronics and two swing panels (optional)

Remote control panel

BDS serials speed gates is available in two versions: with a standard 650 mm or an extended 900 mm passageway. The extended version provides comfortable access for people in wheelchairs and people carrying bulky goods. Fail-safe operation ensures free passage in an emergency case.

The number of the passage zones can be increased with speed gates double-sided section installation. Each double-sided section creates one extra passageway.

The tracking system is equipped with two levels of intrusion detectors, 14 in the upper level and 28 in the lower level, which guarantees passage security at high throughput rate and provides protection from unauthorized simultaneous passage of two or more people.

Indication modules of the passageway direction are located on front ends of gate posts of the turnstile. Indication modules of the passage grant/denial are located in the user line-of-sight range on the speed gate central post allowing quick passage completion.

The speed gate provides the possibility of proximity card readers’ installation under the glass top cover inside the posts.

Operating model

Single passage in the set direction(the turnstile is open for one passage in the permitted direction and closed in the opposite direction).
Bi-directional single passage(the turnstile is open for one passage in each direction).
Free passage in the set direction(the turnstile is open for multiple passages in the permitted direction and closed in the opposite direction).
Free passage in the one direction,single passage in the opposite direction(the turnstile is open for multiple passages in the permitted direction and one passage in the opposite direction).
Always free(the turnstile is open for entry and exit).
Always locked(the turnstile is closed for entry and exit).
