Brand Name : | Jiaxuntong |
Model Number : | CF238FLG |
Certification : | CE |
Price : | USD1-1000 per unit |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1000 units per month |
Delivery Time : | 10-15 work days after payment |

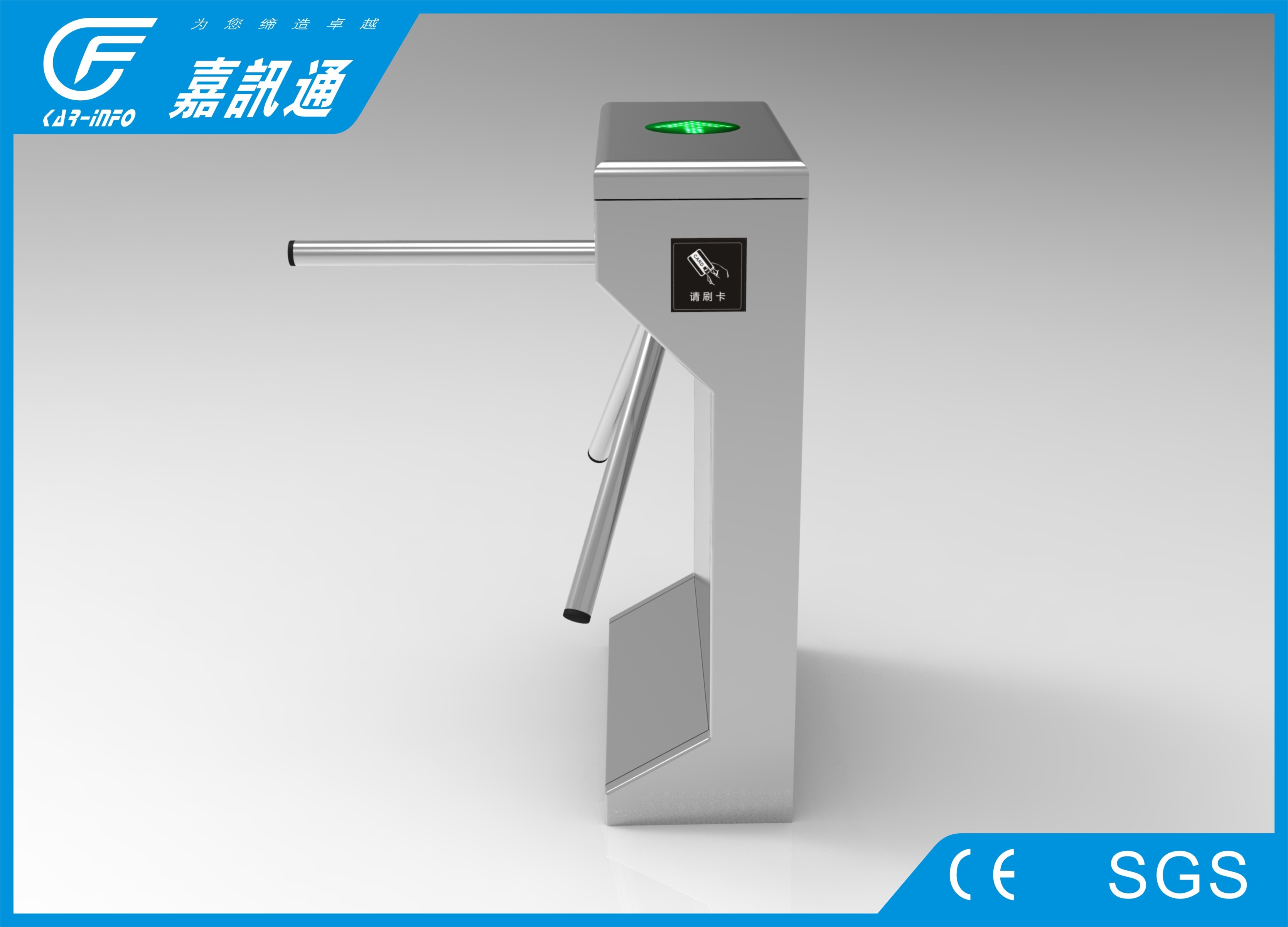

Stainless steel tripod turnstile with remote reader , 3 million cycles life span
Description:
Tripod turnstile is an electro mechanical turnstile.Full-auto type unit with solenoid locking mechanism with electric motor.Semi automatic design without motor allows it to be more economical.Sturdy rock solid internal mechanical parts design maximize it's durability for industrial usage.
Input voltage | 220V |
Drive mode | motor drive |
Drive board voltage | DC24V |
Communication | RS485 or TCP/IP |
Working environment | -20~60 ºC |
Humidity | <=90% coagulation free |
Noise | <=50 DB |
Frequency | 50-60 HZ |
Power | 50W |
Function:
1. Equipped with standard card read window, can be connect with multi
card-readdevice
2. Tripod turnstile with function of break down self check and
alarm,easy maintenance and operation.
3. Can be controlled by external button or remote control. Can set one
or bi-direction passing at will
4. Auto reset function.
5. Anti-follow function,Anti buffering
function,Anti-reverse,anti-pinch
6. Gate auto open when power is off to meet the fire protection
requirements
7. The pole will Auto drop when power is off, auto raising when power
is on.
Detail Image:
![]() |
