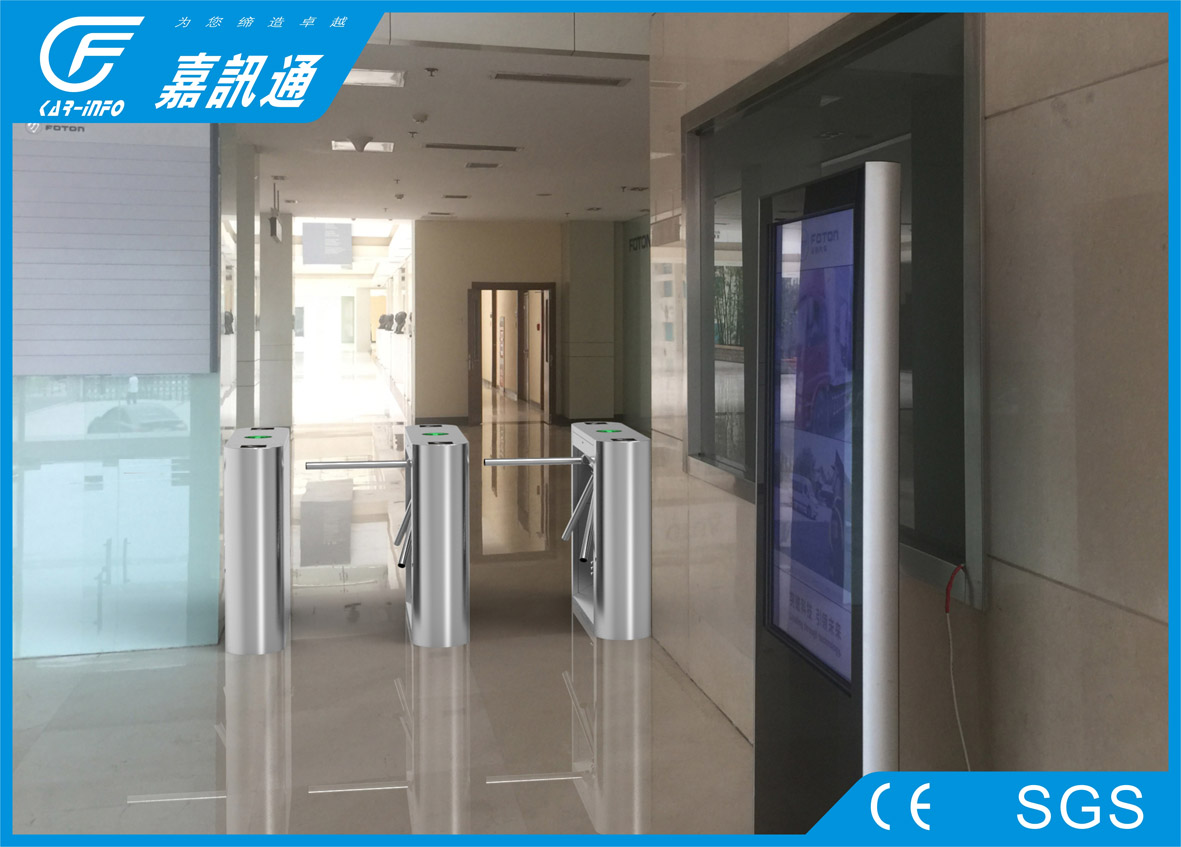

Automatic Card Collector Security Counter tripod turnstiles gates
Tripod Turnstiles specification:
| Product Name | swing barrier gate |
| Power requirements | 110/220-240V,60/50HZ |
| Arms | One sided 304 grade stainless stll |
| Body feature | 304 grade(opt316 grade)stainless steel |
| Operation feature | -20to +90 |
| Control system | Compatible all access control system that provide dry contact |
| Operation | Manually operated bi-direction system or can one direction |
| Emergency mode | System allows free passage in emergency mode and in case of the
power failure |
| Standard Feature | Direction and status indicators on top and side |
| Intergrate system | RFID system |
Counter turnstile gates Feature
1. Designed reasonable and reliable movement, noise small, the
internal hydraulic device automatically Buffer, run a smooth, long
service life.
2. With the power drop-shot function, can also carry out additional
remote control rod ,it in the management and deal with emergencies
.
3. Prompted with the direction of LED lights.
4. Can be set "with memory " or "not to bring memory " function
(when set to "bring Memory", the brush can be used in a scenic spot
ticket too many people groups occasions).
5. With automatic reset function ,namely ,access to lock
permissions, set at the time Three is no inter-lock ,three roller
gates automatic cancellation of this authority back to the lock Set
state.
6. Waterproof ,sunscreen ,cold and high temperature.
7. Installation with personalized interface, compatible with IC,ID
cards and other smart cards.
8. A unified ,standard external electrical interface with a variety
of reading and writing equipment Freely articulated ,easy system
integration .
9. Can be extended to automatic identification systems, achieve
access control ,attendance, fees Functions.
10. Be integrated with other types channels with the use of
Products.
Operating model
Single passage in the set direction(the turnstile is open for one
passage in the permitted direction and closed in the opposite
direction).
Bi-directional single passage(the turnstile is open for one passage
in each direction).
Free passage in the set direction(the turnstile is open for
multiple passages in the permitted direction and closed in the
opposite direction).
Free passage in the one direction,single passage in the opposite
direction(the turnstile is open for multiple passages in the
permitted direction and one passage in the opposite direction).
Always free(the turnstile is open for entry and exit).
Always locked(the turnstile is closed for entry and exit).
Application:
Station, wharf, tourist attractions, entrance/exit channel
management of factory
Channel management for exhibition, swimming pool
Time attendance, access control, consumption management of
enterprise/business unit
Special channel management system
