Brand Name : | Jiaxuntong |
Model Number : | BDQG-120 |
Certification : | CE |
Payment Terms : | T/T |
Supply Ability : | 500set/ month |
Control & Interfaces
1, Card readers
2, Metal detection
3, Electronic/LCD counters
4, Fail-open or fail-secure locking
5, Push-button and wireless remotes
6, Manual key override both directions
7, Indicator lights
Power Supply | AC220/110V±10%, 50/60HZ |
Temperature | -45°C---75°C |
Humidity | <95%, without concretion |
Passage Width | <=600mm |
Passing Speed | 40 persons/min |
Power Consumption | 100W |
Input Interface | +12V electrical signal or impulse signal |
width | more than 100ms |
drive current | >10mA |
Communication Interface | RS485 (Distance:<=1200m) |
Material | 304 stainless steel |

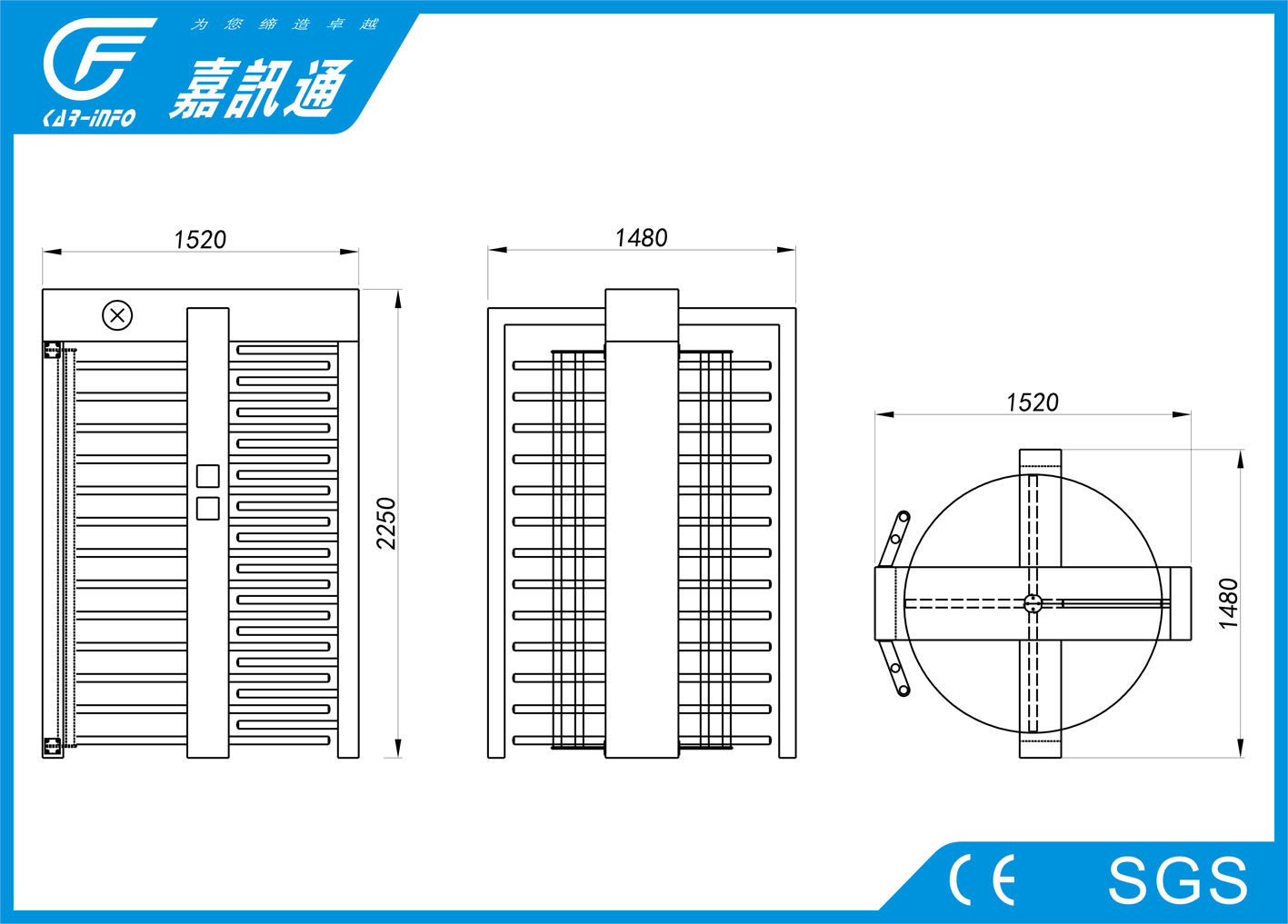

Dimension | 1460*2300*2300 mm |
CommunicationConnection | RS485 Communication Interface or TCP/IP interface |
Protection grade | IP44 |
Use
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls,
hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds,
etc;
5. Transportation Sites: bus, train, subway stations, airports and
so on.
![]() |
