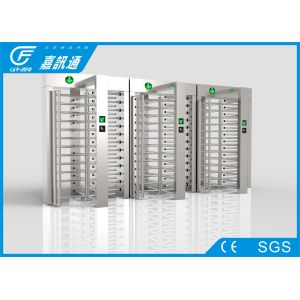

Jiaxuntong Full Height Turnstile Description
Jiaxuntong series automated full height turnstile turnstile, can be
easily to integrate with other read/write devices and systems, can
fulfill functions like entrance control, time attendance,
pedestrian volume control etc. It is widely used for applications
like stadium, apartment, gym, museum, station, library and factory
etc.
1. Fault detection,user-friendly maintenance and use
2. Bi-direction, or one direction permitted, one forbidden, or one
direction need card reader, one for free.
3. Free movement in both directions without power, power lock
function automatically restore on power in case of emergency.
4. When a valid card is read, pedestrian just gently push the
turnstile.Turnstile can be automatically reset.Two-way channel,
three doors are always closed state, the revolving door rotated120
degrees (or 90 degrees each time)
5. Uses a unique rotating system, the gates locked in the zero
position, unlock more accurate and reliable.
6. A unified, standard external electrical interface, can be
articulated with a variety of equipment to read and write, and easy
system integration, and remote control and management by managing
computer
7. With automatic reset function.When a valid card is read, the
passage of time did not pass, the system will automatically cancel
the access by the access permissions.And passage time limit set by
the manager.
8. 485 remote control gate opening and closing functions to meet
the user's special needs and fire safety requirements.
9. Automatically statistical prevailing number of prevailing
direction,and presented to managers by intuitive LED (optional)
,mana
ger can be well aware of the number of passage of a direction.
10. Card reader with memory and without memory function according
to user needs, and the user can be set through the control panel.
11. May limit the total number of sites within software set to meet
the special needs of special occasions.
12. Smooth operation of the whole system, noiseless.
| Dimension | Single-channel:1520*1280*2250mm |
| Stainless Steel Specification | Body: SS304 |
| Brake rod length | 600mm |
| Power Supply | AC110V±10V,60Hz / AC220V±10V,50 Hz |
| Drive motor | DC motor 24V |
| Communication interface | RS485 electrical standard or TCP/IP |
| Passing Speed | 30 persons/min |
| Communication distance | 1200 meters |
| Input Interface | +12V electrical signal or DC impulse signal with width >100ms |
| Communication Interface | RS485/relay signal |
| Operating Temperature | -15°C ~ 50°C |
| Related Humility | <=95% |
| Package | Paper Carton/Wooden Box |
Advantage:
1. Matt finished housing surface, dustproof and rainproof design
for outdoor use.
2. Durable DC brushless motor, highly integrated mechanism, 100%
heavy duty operation.
3. Drop arm when power off, raise arm automatically when power
on.
4. Compatible with other access control system.
5. Convenient installation and maintenance.
FAQ:
1. Can we use our access control system?
Yes, equipped with international interface, can be easily
integrated with other recognition devices.
2. If we buy your products, can you train us?
Yes, we can provide training free of charge. You can send your
engineers to us, we will train them in our factory.
3. Can you make it bi-directional? Any extra cost?
One direction or bi-direction is available, no extra cost.
4. Can it use for outdoor?
Yes, can be used for outdoor and indoor.
5. What's you warranty?
We provide one year warranty. After that, we can supply
chargeable spare parts.
Package:
1. Size:1650x1620x2390mm
2. Gross Weight: 305KG
3. Package: Export packing, plywood box
