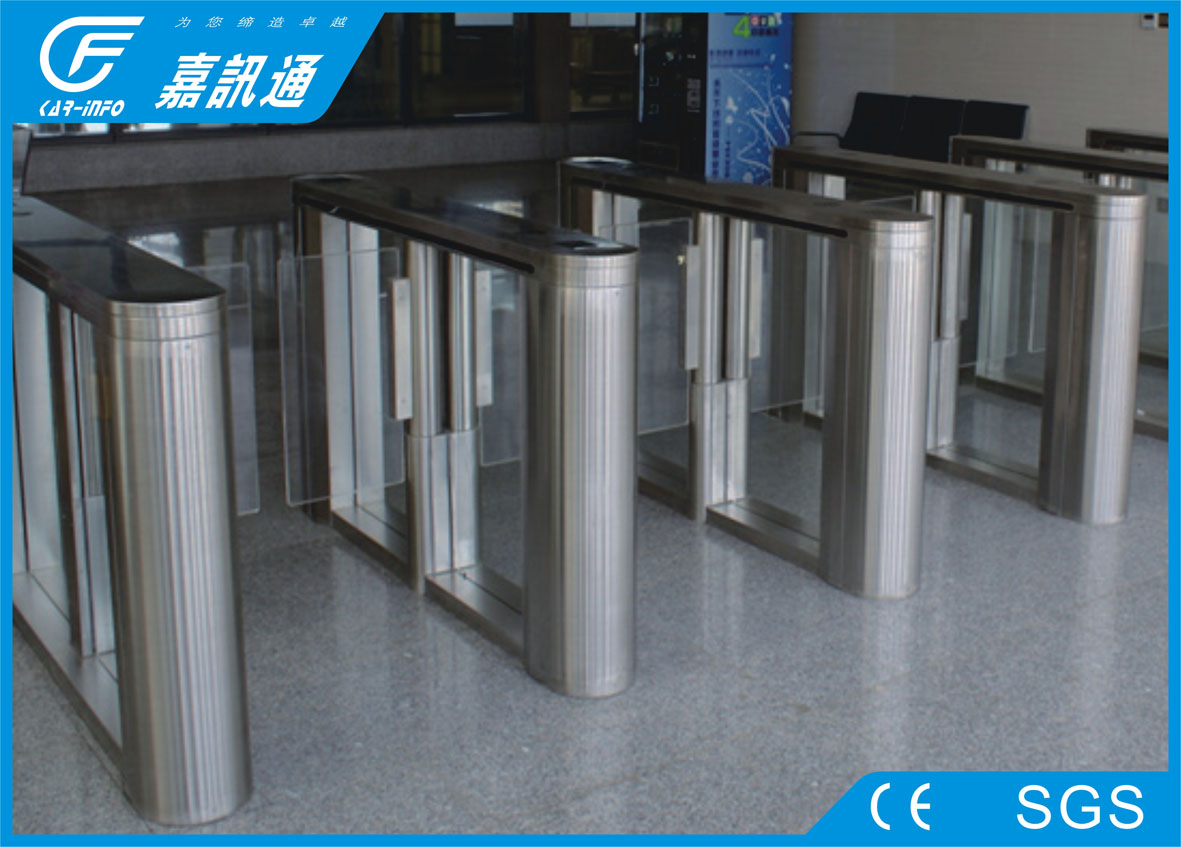

    Speed Safety Control System Customized Card Reader Swing Electrical Turnstiles For Visitor Management

    Ask Lasest Price
    Brand Name : Jiaxuntong
    Model Number : BDS -serials
    Certification : CE
    Payment Terms : T/T
    Supply Ability : 500set/ month
    • Product Details
    • Company Profile

    Speed Safety Control System Customized Card Reader Swing Electrical Turnstiles For Visitor Management

    Speed Safety Control System Customized Card Reader Swing Electrical Turnstiles For Visitor Management


    Technical Parameters:


    1PowerAC220V±10% 50HZ
    2Operating Temperature-45°C-60°C
    3Relative Humidity<95%, No Densation
    4Access Width550 mm
    5Passing Speed50 persons/min. (IC Card)
    6Motor130W/24V
    7Motor Operation Speed160R/Min.
    8Communication Distance≤1200M
    9Input Connection+12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
    10Communication ConnectionRS485 Communication Module Standard
    11MaterialStainless Steel 304, thickness is no less than 1.5mm
    12Running Life5-8 Million (Continuous Opening and Closing Operation)
    13Protect LevelIP 54
    14Colour

    SSB (US32D)-Stainless Steel Brushed/Power Coating (Optional),

    or other Colour you like

    15Operation Place

    Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall,

    Residence Area, Enterprise Entrance and Exit Attendance, Gateway Guard,

    Charge Management, Special Access Control

    Features


    1. Door will keep opened automatically while power cut off.
    2. Direction of through is adjustable, one-way, bi-direction.
    3. Use RJ45 port for synchronization between turnstiles, simplify installation setting.
    4. LED direction indicator
    5. Anti-pinch function
    6. Anti-tail, prevent people follow pass without verified
    7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
    8. RFID access controller for standard, fingerprint reader, facial identify reader, barcode reader, consume system optional.
    9. Combine IR detector, support people counting, prevent follower, wrong way alarm function.
    10. Option temperature controller, support machine working fine in cold weather.
    11. Option bluetooth remote controller, support remote open.
    12. Option the crashproof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it
